Concertina Razor Barbed Wire Machine / Blade Wire Making Machine

Concertina Razor Barbed Wire Machine / Blade Wire Making Machine

Introduction of Razor Barbed Wire Machine / Blade Wire Making Machine

The razor barbed wire machine is a special machine for the production of razor barbed wire. It has the characteristics of high efficiency and good quality. The machine is compact in structure, small in size; easy to operate, easy to adjust, easy to maintain, and low energy consumption. It is suitable for producing various styles of razor wire.
Razor barbed wire machine produce razor barbed wire, which is mainly used in Boundary protection,communication stations, power distribution stations, landfill, community protection,schools, factories, farms,and other security isolation. The machine including two main parts is punching machine and Forming machine. Line 1.Punching machine:it uses to cut the steel strip,and make the steel strip into a razor blade. Different mold can make different razor blade shape,5 strips and 9 strips are the most common model. Line 2.Forming machine:it use for warp steel wire into razor blade then wind up razor blade wire in the coil.

Razor Blade Wire ,Also called Concertina Wire ,Our Concertina Razor Barbed Wire Machineuse Fully Automatic System, Full Producing Line Including : De-coiler +Punching Machine +Razor Strips Re-coiler , Razor Strps Feeding Machine +wire feeding Machine +Coiling Machine +Finish products .it works at high Speed But Low Power Costs. keep works at smooth and stable state.

Feature of Razor Barbed Wire Machine

1. Automatically complete production line, operator friendly and higher speed.
2. Automatical decoiler holding max. 2tons steel sheet; its motor made of copper leads.
3. Different ton punch press for choice to save your cost.
4. Customized mold saving 20% raw materials; hot-cast mold, one year life.
4. Slitting frame and recoiler to wind up razor tapes rolls tightly.
5. Electro-magnetic motor in coiling machine for smooth speed adjustable.
6. Multifunctional squeezing wheels for strong finished razor wire.

Advantages of Concertina Razor Barbed Wire Machine / Blade Wire Making Machine

1. Automatic de-coiler holding max.2 tons steel sheet; its motor made of copper leads.

2. We adopts Chinese No. 1 punch machine YANGLI brand, and step motor to feed steel sheet fast and smooth.

3. Control box with Text screen and PLC control and Delta inverter easily.

4. Punch machine was equipped with Foot/button switch control separately for easy operation.

5. Customized hardened alloy mold ensures little wastage of raw materials; hot-cast mold, one-year life.

6. Lubricant oil device is visible and central process, maintain machine easily, extend machine life.

7. Strong machine body made of cast steel with complex metal working.

8. Razor coiling machine adopts Grid counter to record loops quantity automatically.

9. Razor coiling machine adopts inverter to adjust working speed, more precise, long life. 10.Roller diameter for finished wire can be adjustable widely.

Technical Parameters of Concertina Razor Barbed Wire Machine / Blade Wire Making Machine

concertina razor wire machine

barbed wire making machine

blade wire production machine

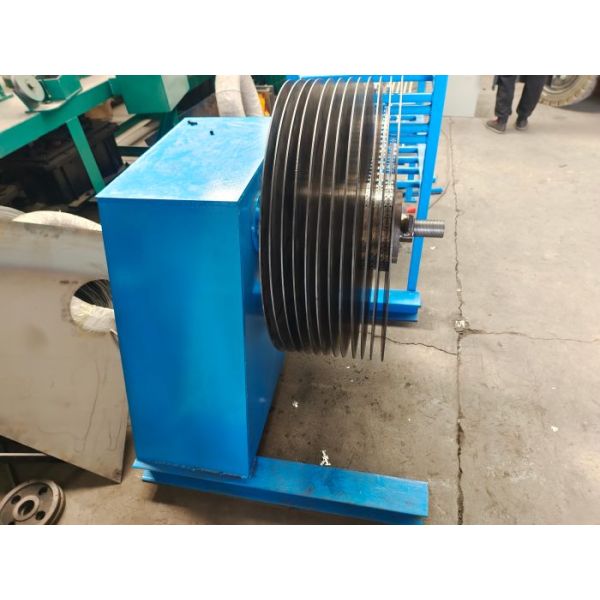

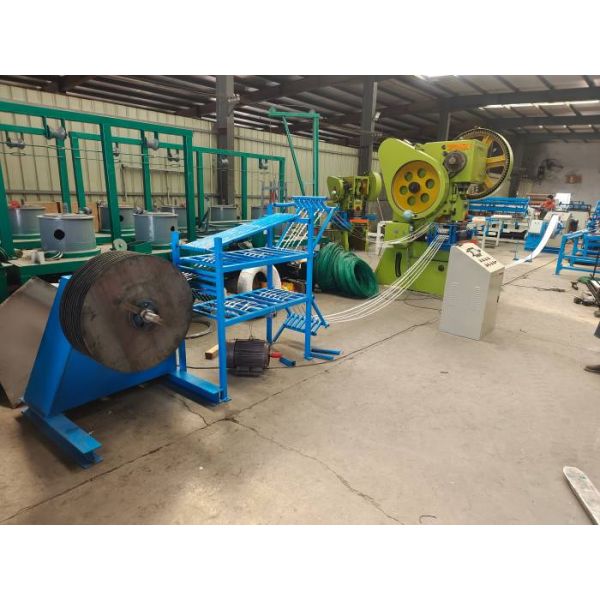

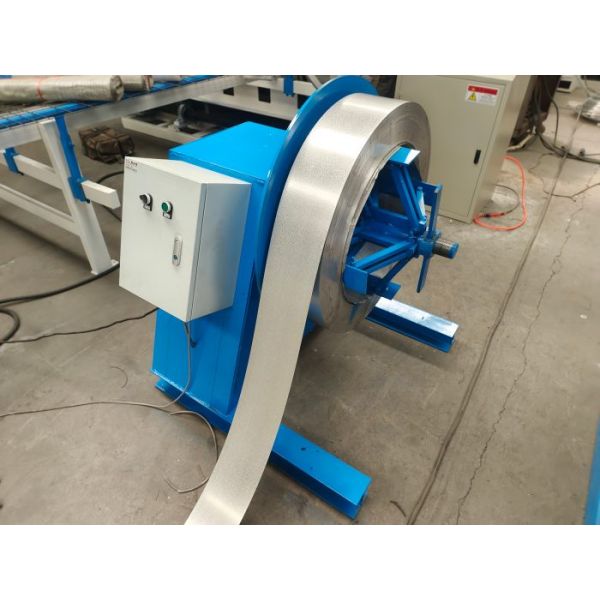

Concertina Razor Barbed Wire Machine / Blade Wire Making Machine Images
